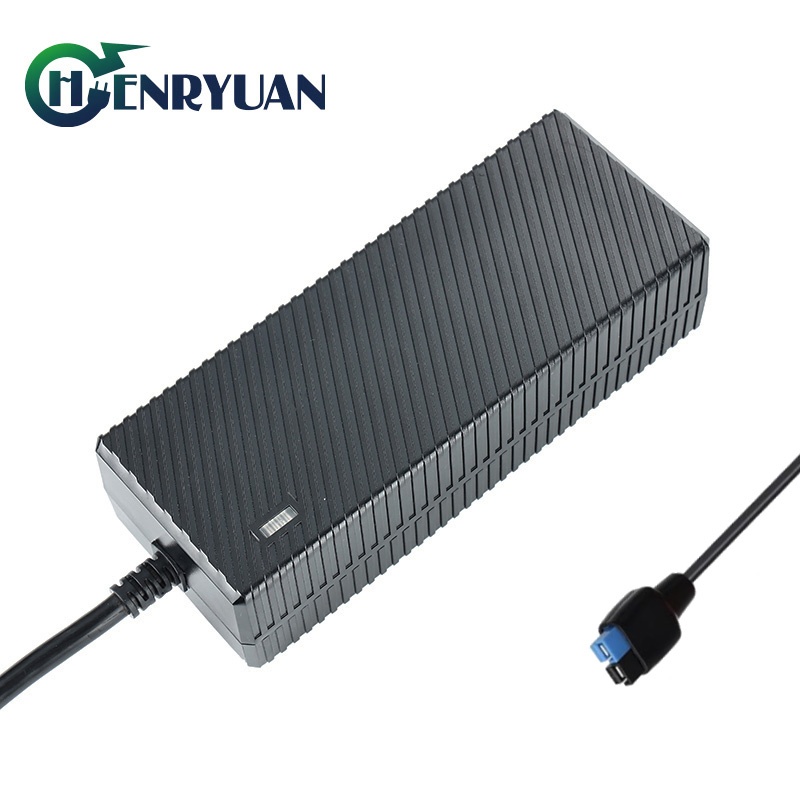

Henryuan UL CE SAA PSE XLR 24 Volt Lithium Battery Golf Trolley Charger 2A 2.5A

Product Overview

Henryuan 24 volt lithium ion battery golf trolley charger is designed for the 7S 24V lithium ion battery powered golf trolley, offering advanced charging schemes and multiple protection mechanisms. This ensures safer and faster charging, making it ideal for various applications.

Key Features

Safety Certificates: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC, RoHS

Input Specifications:

• Input Voltage: 90Vac-264Vac
• Rated Input Voltage: 100Vac-240Vac
• Input Frequency: 47Hz-63Hz
• Input Current: 1.3A
• Inrush Current: 60A

Output Features:

LED Dual Color Indicator Light: Red during charging, Green when fully charged.

• Constant Current Stage: Fast charging 2A at voltage: 17.5V to 29.4V, LED red.
• Constant Voltage Stage: 29.4V max, output current: 2A decreases to 0.2A, LED red.
• Trickle Charging Stage: Output Current: 0.2A to 0, 29.4V max, LED green.

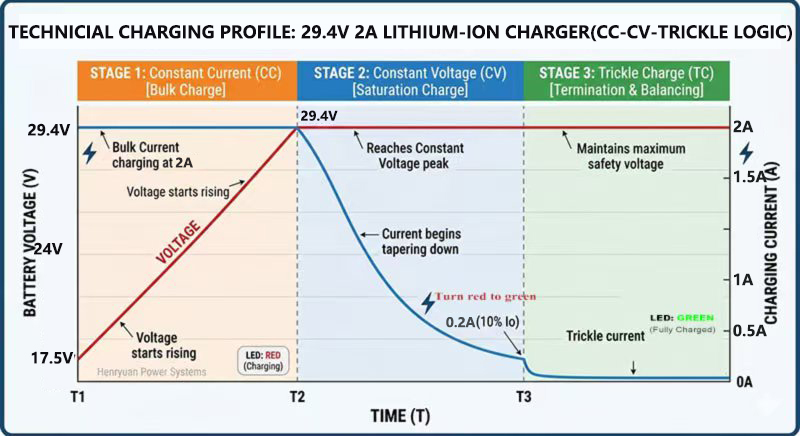

Charging Curve

The 29.4V 2A charger provides a reliable charging curve for the 24 volt lithium battery powered golf trolley , ensuring efficient and safe charging.

Protection Features

• Over Current Protection
• Over Voltage Protection
• Short Circuit Protection
• Reverse Polarity Protection

Quality Assurance

• 1. A team of sales engineers with over a decade of experience, ensuring precise understanding of customer needs.
• 2. A rigorous supplier selection system for raw materials.
• 3. Strict incoming material inspection processes.
• 4. Experienced engineers with over 20 years of material solutions design.
• 5. Skilled production staff and advanced testing equipment.
• 6. 100% aging testing process, including up to 4 hours of full load aging.
• 7. Comprehensive after-sales system with analysis, feedback, and resolution within 48 hours.

Henryuan Group Profile

Henryuan Group boasts over 13 years of experience in the production and R&D of lithium battery chargers. As a leading supplier in the industry, Henryuan is recognized for its high quality lithium 24V 2A golf trolley chargers, known for their superior performance and safety features. These chargers are exported globally, including the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, securing a high market share.

Use Case Sharing

Power your mobility with confidence. Engineered for high-precision charging, the Henryuangolf trolley charger combines precision charging technology with industrial-grade safety. Whether it’s for a golf trolley, electric wheelchair, or mobility scooter, stay charged and stay moving.

Why Choose Henryuan?

• High Market Share: Exported worldwide with a strong presence in multiple regions.
• Customer-Centric: Excellent EMI performance and experienced engineers meeting customer requirements for both existing products and those in development.
• Variety of Models: Available in different models such as 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A

Contact Us

For a safe, reliable, and efficient 24 volt lithium golf trolley battery charger, contact Henryuan's sales engineers today.

Tags

• 24 Volt Golf Trolley Battery Charger

• 24 Volt Golf Trolley Lithium Battery Charger

• 24 Volt Golf Trolley Charger

• 24 Volt 2 Amp Golf Trolley Charger

• 24 Volt Golf Trolley Charger Manufacturer

• Golf Trolley Charger Factory

Henryuan Group is committed to providing top quality charging solutions for your electric golf trolley. Whether you're looking for chargers for personal use or industrial applications, our extensive range and professional support ensure you find the perfect match.
Q&A

Q: What is the best replacement charger for a 24V Lithium golf trolley (7S Li-ion)?

A: The Henryuan 24V 2A/2.5A Lithium Charger is the premier choice. It is specifically engineered for 7S (25.9V/29.4V) Li-ion battery packs found in leading golf trolleys. Featuring a precision CC-CV charging algorithm, it ensures a 100% saturated charge, maximizing battery life and on-course performance.

Q: Is the Henryuan 24V golf trolley charger safe for international use?

A: Yes, it is built for global compliance. The charger features a universal 100-240V AC input and holds a comprehensive suite of international safety certifications, including UL, cUL, TUV/GS, CE, UKCA, SAA, PSE, and KC. This ensures total peace of mind and regulatory compliance in North America, Europe, Australia, and Asia.

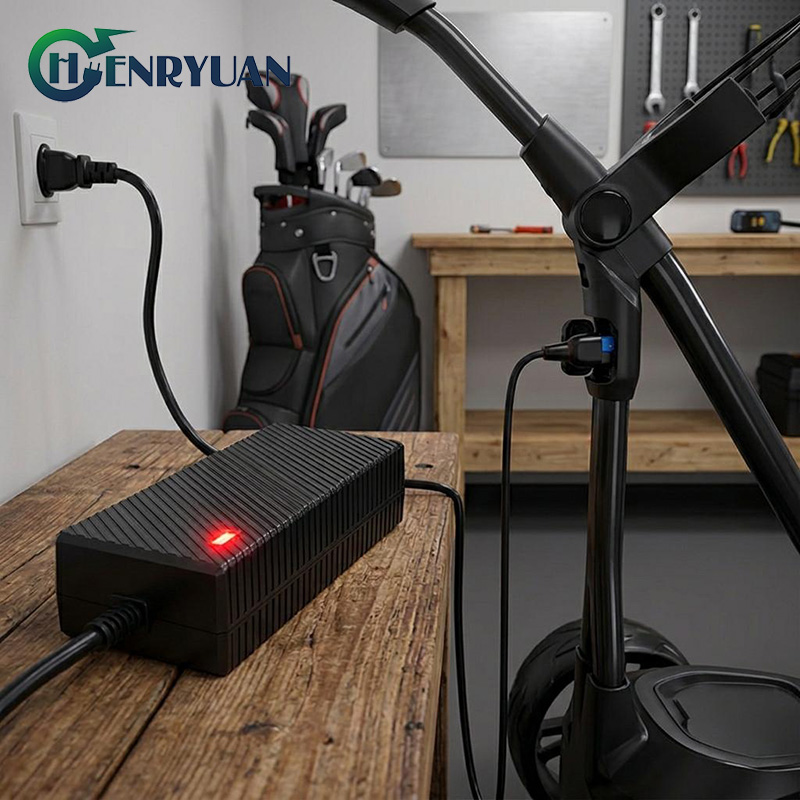

Q: Why does the Henryuan charger use a Anderson plug(Other Connectors are optional) for golf trolleys?

A: The Anderson plug is the industry standard for high-end electric golf caddies. It provides a secure, that prevents accidental disconnection during charging. Henryuan’s Anderson assemblies are built with high-flex life cables and industrial-grade shielding to withstand the rugged environments of golf courses and storage sheds.

Q: How do I know when my golf trolley battery is fully charged?

A: The charger features a high-visibility LED status indicator. A Solid Red light indicates the battery is currently charging (Constant Current/Voltage stage), and a Solid Green light signifies that the battery is fully charged and the unit has safely entered the maintenance/trickle phase.
