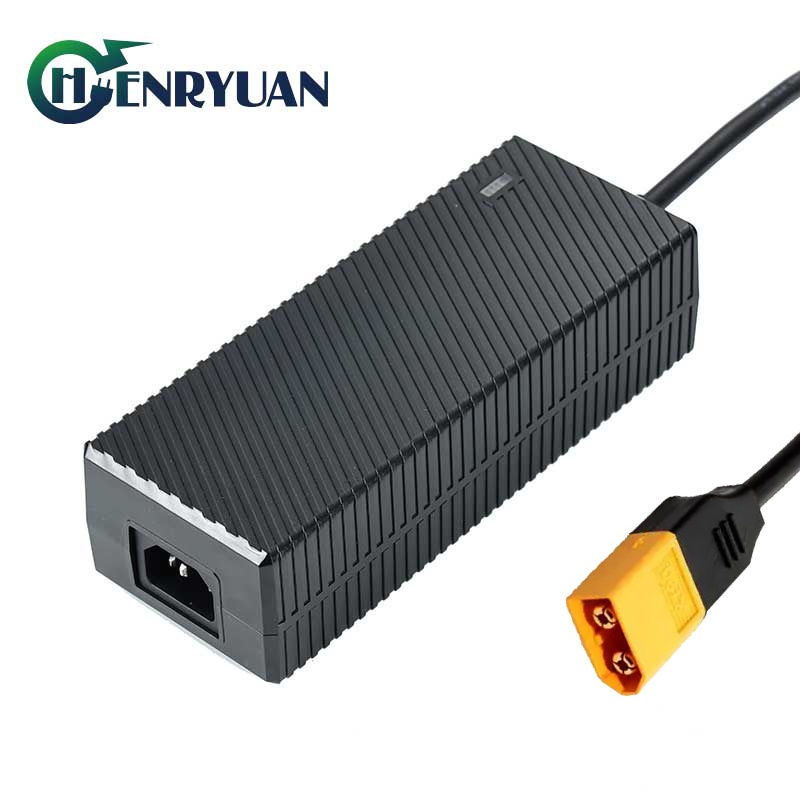

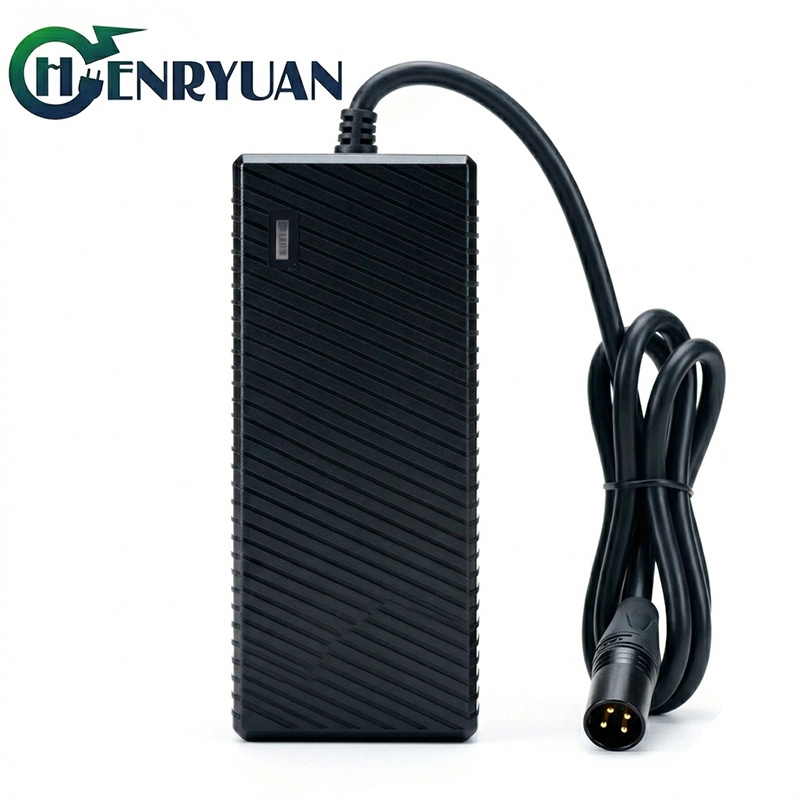

Henryuan 42V 10A Super Fast Charger: Eliminate 36V Lithium-Ion Battery Downtime
When managing high power 36V lithium battery powered electric vehicle fleets (e.g., eBikes, golf carts, AGVs, electric marines), fast charging with safety is necessary. Henryuan 42V 10A Lithium-ion Charger is engineered for this challenge, delivering 420W of high-output power to dramatically cut recharge cycles—reducing charging time by 50% compared to 5A standard chargers.
Designed for 10S Li-ion packs, it utilizes an intelligent, 3-stage CC/CV/Trickle algorithm to ensure precision charging, guaranteeing battery safety and maximizing lifespan even under rapid charge conditions.
More 10S Lithium Ion Battery Charger Models:
- 10S 2A lithium ion battery charger: HRY4202000, Output: 42V 2A.
- 10S 3A lithium ion battery charger: HRY4203000, Output: 42V 3A.
- 10S 4A lithium ion battery charger: HRY4204000, Output: 42V 4A.
- 10S 5A lithium ion battery charger: HRY4205000, Output: 42V 5A.
- 10S 7A lithium ion battery charger: HRY4207000, Output: 42V 7A.
Key Features: Performance and Certification
Global Compliance:
-
Fully compliant with ETL, UL, CE, PSE, SAA, UKCA, and FCC certifications, making it globally ready for deployment across all major markets.
Wide Input Compatibility:
- Supports 90-264Vac input voltage and a frequency range of 50/60Hz, making it versatile for use worldwide
High Efficiency:
- >95% Energy Efficiency minimises wasted power and heat generation during the intense 10A charge cycle.
Advanced Thermal Management:
- Features an advanced natural cooling system within its durable plastic casing, ensuring reliability over thousands of cycles even during high-current output.
- Precise 42V(±0.2V) charging voltage with overcurrent, overvoltage, short circuit, and reverse polarity protection prevents overcharging, extends battery life, and improves charging safety.
Charging Specifications (42V10A Super Fast Charger)
Output Current: 10A 42V DC
Dimensions: 246×105×54mm, Weight: 1kg
|
Output |
Charging Stage |
LED Indicator |
|
|
Current |
Voltage |
||
|
10A Fixed |
25V- 42V |
Constant Current |
Red(Charging) |
|
10A->1A |
42V Max |
Constant Voltage |
Red(Charging) |
|
1A->0 |
42V |
Trickle Current |
Green(Fully charge battery) |

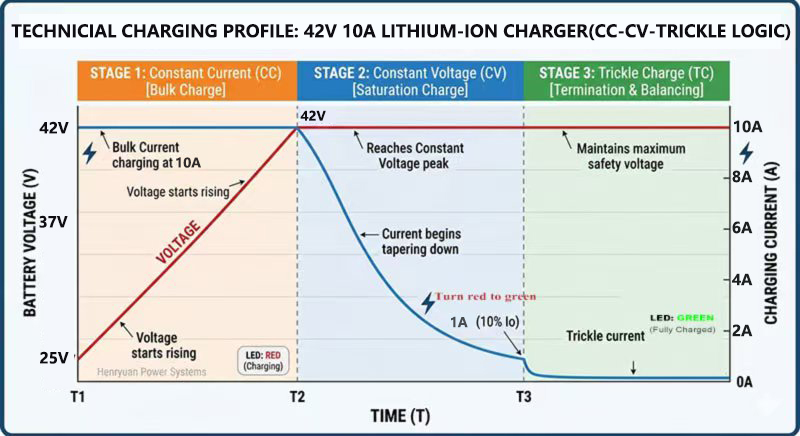

Charging Process Diagram:
Specially designed for 42V 10A Li-ion battery charger with safe and efficient charging.
Why Choose This 42V 10A Charger For 10S 36V Lithium Ion Battery?
- 13+ Years of Expertise: Specialized in high-current Li-ion charging R&D for global eMobility leaders.
- Quality Testing: 100% full-load aging tests on every unit to verify durability under continuous high power output.
- Custom Range: We offer the full 42V current range from 0.5A up to 10A, with full customization services for DC connectors (XT60, XLR, Anderson), labels, and packaging.
- Customer Support: Robust after-sales system with responsive service and reliable delivery worldwide.
Professional Production Equipments
Henryuan Customer Five-star reviews:
About Henryuan Group:
With over 13 years of expertise, Henryuan has built a reputation as a leading global supplier of lithium battery chargers. Each charger is backed by expert engineering, robust production processes, and a customer-first after-sales service system. Our 42V 10A Li-ion battery charger is renowned for its superior performance and safety features, making it a popular choice globally. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.
More 42V Lithium Battery Charger Links:
Contact us:
For professionals seeking superior performance and reliability, this 42V10A Li-ion charger is an essential investment for industrial and commercial needs.
Ready to drastically reduce the charging time of your 36V lithium ion batteries? Contact Henryuan expert sales teams today to discuss your 10S charging requirements.
Relevant Keywords:
- 42V10A Fast Charger
- 36V eBike Charger
- 10S Lithium Charger
- 42V10A Charger Supplier
- 10A High Current Charger.
- 42V 10A Charger
- 42V Lithium Battery Charger
Henryuan Group, the high quality 42V 10A lithium battery charger manufacturer!
Q&A:
Q: Why is the Henryuan 42V 10A charger considered the best choice for 36V lithium-ion battery packs?
A: The Henryuan 42V 10A charger is favored by customers for its high current output and industrial-grade safety standards. Unlike standard current chargers, this 10A charger significantly reduces the charging current of large-capacity 36V battery packs (0.2C-0.5C charging current) (typically used for charging large-capacity battery packs in electric freight bicycles and heavy-duty robots). It integrates a precise three-stage charging algorithm (constant-current, constant voltage and trickle current), ensuring not only 100% full charge but also extending the overall cycle life of the battery.
Q: What international safety certifications does the Henryuan 42V 10A lithium-ion charger have?
A: To ensure legal use in the global market and user safety, this 42V 10A charger has passed the most stringent certification standards, including:
North America: UL, ETL, and FCC Part 15.
Europe: TUV/GS, CE (LVD and EMC), and RoHS.
United Kingdom: UKCA
Asia Pacific: PSE (Japan), SAA (Australia), CCC(China) and KC (South Korea).
These certifications demonstrate that this high quality charger compliants with safety regulations and electromagnetic interference (EMI) requirements.
Q: How does the Henryuan sealed 42V 10A lithium battery charger dissipate heat?
A: This charger features a sealed plastic shell design, making it small and portable. It also integrates an advanced aluminum heat sink design, ensuring high energy efficiency conversion, rapid heat dissipation, and minimal temperature rise.
Q: What DC connector types and customization options are available for this professional 36V lithium battery charger?
A: Henryuan offers extensive OEM and ODM customization services to meet diverse application needs. For the 42V 10A charger, common DC connector options include:
High current plugs: 3-pin XLR, GX16 3pin, Anderson (PP45, SB50), and various XT series connectors (XT60/XT90).
Customization services: We can customize charging curves (charging voltage, current), AC cable and DC cable lengths according to specific battery characteristics, and provide customized labeling services.
Q: What protection features are built into the Henryuan 42V 10A charger?
A: Safety is at the heart of our technology. This high performance 42V 10A li-ion charger is equipped with a multi-layer protection system, including:
Overvoltage Protection (OVP): Prevents the battery voltage from exceeding safe limits.
Overcurrent Protection (OCP): Precisely limits the current to 10A to avoid battery overload.
Short Circuit Protection (SCP): Automatically shuts off the charger when a short circuit is detected.
Reverse Polarity Protection: Prevents damage caused by reverse battery connection.
