CC-CV Charging Explained: Why Constant Current, Constant Voltage, and Trickle Current Matter in Lithium Battery Chargers

Lithium-ion batteries power an ever-growing range of products, from e-bikes and autonomous mobile robots (AMRs) to medical devices, energy storage systems, and industrial equipment. While battery technology continues to advance, charging remains one of the most important factors affecting battery safety, service life, and overall system reliability.

A battery charger does far more than deliver power. It regulates current, controls voltage, monitors charging conditions, and helps protect the battery throughout every stage of the charging cycle. Even a well-designed battery pack can experience reduced capacity, shortened cycle life, or premature failure if paired with an unsuitable charger.

For this reason, modern lithium battery chargers are built around the Constant Current–Constant Voltage (CC-CV) charging method. Many industrial-grade chargers further enhance this process with a carefully controlled Trickle Current completion stage, creating a three-stage charging profile designed for demanding OEM applications.

This article explains how each charging stage works, why it matters, and what engineers should consider when selecting a charger for professional equipment.

Why Lithium Batteries Require Controlled Charging

Unlike lead-acid batteries, lithium-ion cells operate within a relatively narrow voltage window. Charging beyond the specified voltage or applying excessive current generates unnecessary heat, accelerates chemical aging, and may trigger the battery's protection system.

An effective charger must therefore balance two objectives:

• Restore battery capacity as quickly as practical.

• Protect the battery throughout the charging process.

The CC-CV charging profile has become the global standard because it successfully achieves both.

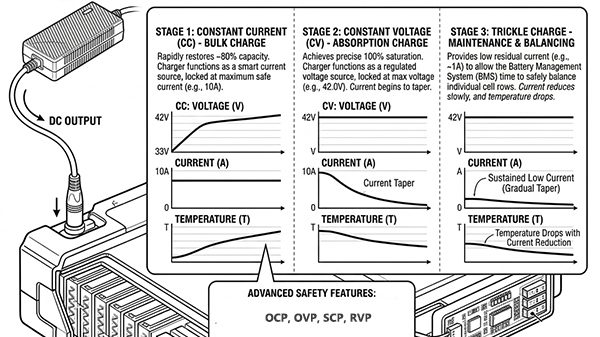

Understanding the Three-Stage Charging Process

Industrial lithium battery chargers typically divide charging into three controlled stages.

Each stage serves a specific purpose.

Stage 1 – Constant Current (CC)

Charging begins with the battery at a relatively low state of charge.

During this stage, the charger supplies a fixed charging current while allowing the battery voltage to increase naturally. For example, a charger rated at 10A continuously delivers 10A until the battery reaches its programmed charging voltage.

Because the battery can safely accept a relatively high charging current during this period, most of the usable capacity is restored in the Constant Current stage. Depending on the battery chemistry and charging conditions, this phase typically replenishes approximately 70–80% of the total capacity.

Maintaining a stable charging current offers several advantages:

• Efficient energy transfer

• Controlled battery temperature

• Reduced stress on internal cell materials

• Predictable charging performance

Accurate current regulation during this stage establishes the foundation for safe charging throughout the remainder of the cycle.

Stage 2 – Constant Voltage (CV)

As the battery approaches full charge, its terminal voltage rises toward the maximum value specified by the cell manufacturer.

Once this voltage is reached, the charger changes operating mode.

Instead of continuing to increase output voltage, it maintains a constant voltage while allowing the charging current to decrease naturally.

Typical charging voltages include:

During the Constant Voltage stage, the battery accepts progressively less current as it approaches full capacity. This gradual reduction minimizes cell stress while allowing the remaining energy to enter the battery safely.

Precise voltage regulation is particularly important because even small deviations above the recommended charging voltage can accelerate electrolyte degradation, increase internal resistance, and shorten battery life.

Stage 3 – Trickle Current (Charge Completion)

After the charging current decreases to the predefined termination threshold during the Constant Voltage stage, many industrial lithium battery chargers enter a controlled Trickle Current completion stage.

Unlike the continuous float charging used for lead-acid batteries, the Trickle Current stage for lithium batteries is not intended to maintain the battery indefinitely at full charge. Instead, it provides a carefully controlled, ultra-low charging current for a limited period to complete the charging process under stable conditions.

During this stage, the charger continues to monitor battery voltage while supplying only a small amount of current—typically less than 10% of its rated output.

This controlled finishing stage provides several important benefits:

• Allows the Battery Management System (BMS) sufficient time to balance individual cells

• Reduces voltage differences across the battery pack

• Improves charging consistency in multi-cell battery systems

• Minimizes unnecessary heat generation during the final stage of charging

• Supports long-term battery performance by completing the charging cycle gradually

Once the battery reaches the charger's termination criteria, charging stops automatically.

For large lithium battery packs used in robotics, medical equipment, electric mobility, and industrial automation, this additional stage contributes to improved pack consistency and dependable long-term operation.

Why Accurate Current and Voltage Control Matter

An industrial charger continuously regulates both current and voltage throughout the charging cycle.

This control helps prevent several common causes of battery degradation:

Overcurrent

Excessive charging current generates unnecessary heat and increases mechanical stress inside the cells.

Overvoltage

Charging beyond the manufacturer's specified voltage accelerates electrolyte oxidation and reduces battery cycle life.

Thermal Stress

Stable charging reduces internal temperature rise, helping preserve battery chemistry over repeated charging cycles.

Cell Imbalance

Gradual completion of the charging cycle gives the BMS additional time to equalize individual cell voltages before charging ends.

Together, these functions improve both battery longevity and overall system reliability.

The Importance of Overcurrent Protection

Precise PWM (Pulse Width Modulation) closed-loop feedback limits the current to the nominal value in real time.

This additional level of protection helps safeguard:

• Battery Management Systems (BMS)

• Power MOSFETs

• Connectors and wiring harnesses

• Internal charger components

• Downstream electronic equipment

Thermal Design Is Just as Important as Charging Performance

Charging efficiency is only part of the equation.

Heat is one of the primary factors affecting the long-term reliability of power electronics. Poor thermal management can shorten component life, increase failure rates, and reduce charging efficiency.

Industrial battery chargers commonly incorporate features such as:

• High-efficiency switching topologies

• Optimized PCB layouts

• Large internal aluminum heat sinks

• Advanced thermal interface materials

• Fanless natural convection cooling where appropriate

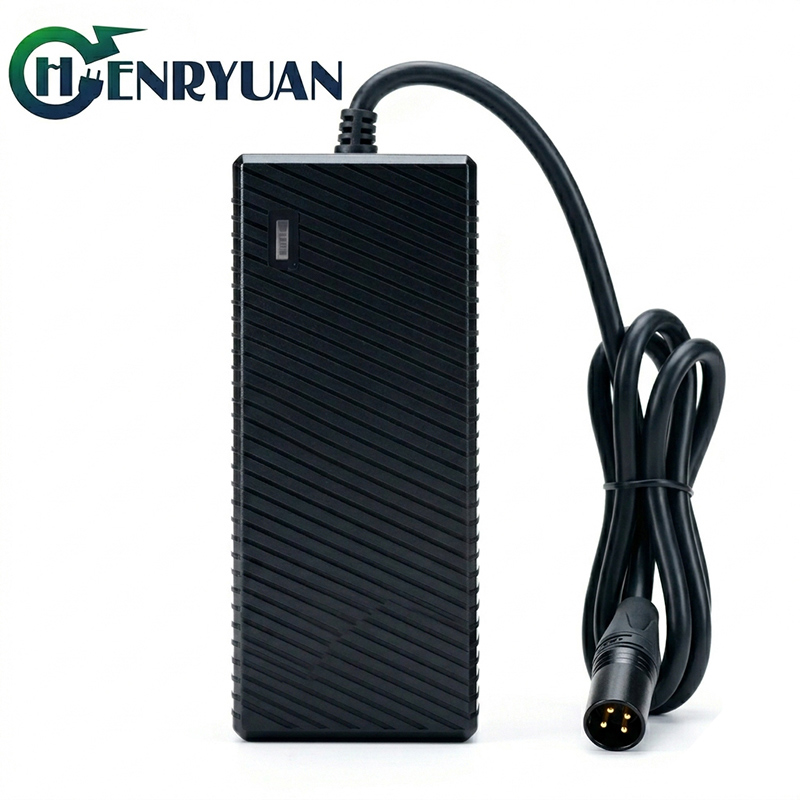

A well-designed thermal system allows the charger to maintain stable electrical performance over a wide operating temperature range while reducing maintenance requirements associated with cooling fans. Eg our lithium 10A fast charger.

What Engineers Look for When Selecting an Industrial Battery Charger

For OEM equipment, selecting a charger involves much more than matching voltage and current specifications.

Engineers typically evaluate several key characteristics:

• Stable CC-CV-Trickle charging profile

• High charging efficiency

• Low ripple and electrical noise

• Accurate voltage regulation

• Fast overcurrent and short-circuit protection

• Reliable thermal management

• International safety certifications

• Consistent manufacturing quality

• Long-term component availability

• Proven reliability in continuous-duty applications

These factors directly influence the performance and reliability of the finished product.

Applications That Benefit from Three-Stage Charging

A properly designed CC-CV-Trickle charging system is suitable for a wide range of lithium-powered equipment, including:

• Autonomous Mobile Robots (AMRs)

• Automated Guided Vehicles (AGVs)

• Portable medical devices

• Mobility scooters

• Electric wheelchairs

• E-bikes and electric scooters

• Marine and underwater equipment

• Floor cleaning machines

• Industrial automation systems

• Portable energy storage systems

Each application places different demands on battery performance, but all benefit from accurate charging control and dependable protection.

Conclusion

The charger is one of the most critical components in any lithium-powered system. Its role extends well beyond supplying energy—it determines how efficiently, safely, and consistently the battery operates throughout its service life.

By combining Constant Current, Constant Voltage, and a carefully controlled Trickle Current completion stage, industrial battery chargers provide fast charging while minimizing stress on the battery pack. When paired with precise voltage regulation, comprehensive protection functions, and effective thermal management, this three-stage charging approach helps maximize battery performance and improve long-term system reliability.

As lithium batteries continue to power more industrial, commercial, and medical applications, selecting a charger engineered for accuracy, consistency, and durability becomes an essential part of building dependable products—not simply an accessory added at the end of the design process.
