UL CE SAA PSE UKCA 2A Charger For 12V Lead Acid Battery Power Tool

Product No.：HRY1462000
Online Inquiry

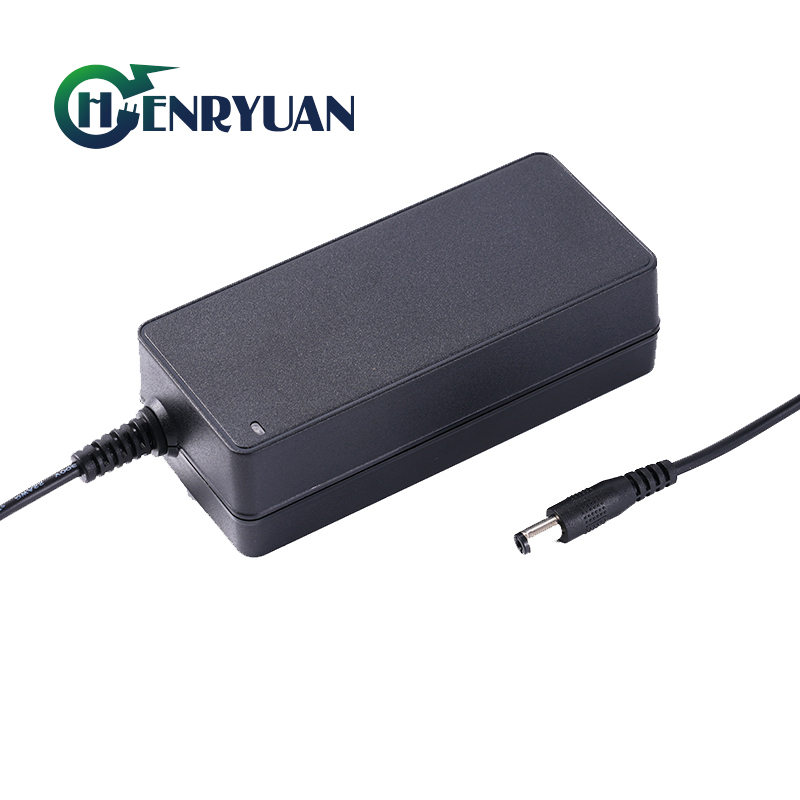

UL/CE/SAA/PSE/UKCA-Certified 12V 2A Lead Acid Battery Charger for Power Tools

Henryuan 12V 2A Lead Acid Charger is engineered for safety, reliability, and global compliance. Designed to efficiently charge 12V SLA (Sealed Lead Acid), AGM, and GEL batteries, it is the ideal power solution for power tools, automotive maintenance, and light industrial applications.
Featuring a robust 2A output, this charger employs a 3-stage intelligent charging process—Constant Current (CC), Constant Voltage (CV), and Float—to fully restore battery capacity while preventing damaging overcharge, thereby extending the lifespan of your 12V battery packs.

Applications:

Cordless Power Tools & Fleets: Works flawlessly as a stable 12V 2A battery charger for cordless drills, circular saws, and battery-operated workspace hardware, ensuring steady bulk current recharging without thermal stress.
Automotive, Marine & Storage Maintenance: Highly optimized as a safe motorcycle and marine 12V 2A trickle charger, holding a zero-stress constant float phase that safeguards small car or boat batteries during extended winter storage.
Industrial Infrastructure & UPS Systems: Ideal for facility frameworks, working as a heavy-duty 12V 2A SLA charger for UPS backup systems, emergency telecommunication arrays, and security alarms.

Key Features & Global Compliance

Optimized Charging: Optimized Charging: Three-stage charging ensures the battery is fully healthy, maintains charging safety, and extends battery life.
Versatile Compatibility: Supports 12V Lead Acid Batteries ranging from 7Ah to 20Ah, suitable for motorcycles, UPS backups, and power tool fleets.
Multi-Certified Safety: Fully compliant with UL, cUL, CE, SAA, PSE, UKCA, GS, and CCC standards, backed by CB and RoHS compliance.
User-Friendly Design: Features LED indicators (Red Charging / Green Full) and customizable DC connectors (e.g., 5521, 5525, XLR, Anderson, XT60, or Alligator Clips).
Technical Protections: Built-in Overload, over-voltage,over-current, reverse voltage protection and Double Insulation protection level.

Technical Highlights

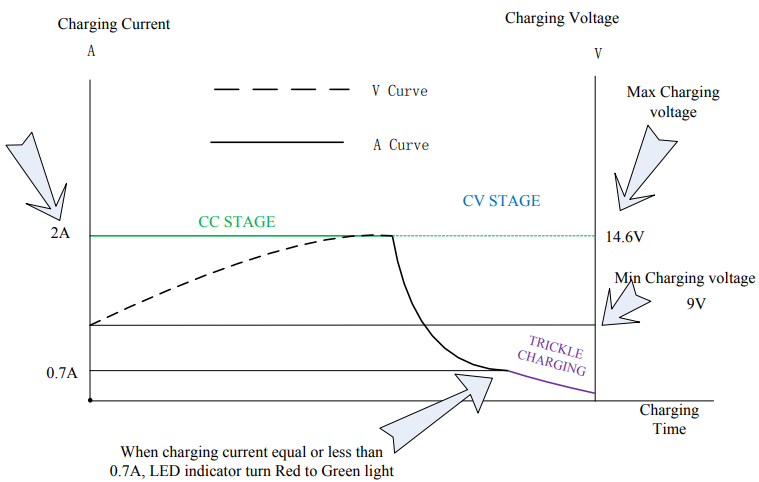

3-Stage Charging Details (12V2A Charger)

Input: 100-240V AC, 50/60Hz (universal compatibility).
Output Max: 14.6/13.8V DC @ 2A.
Operating Temp: -25°C–45°C (storage: -30°C–70°C).

Output		Charging Stage	LED Indicator
Output
Current	Voltage
2A	9V-14.6V	Constant Current	Red(Charging)
2A->0.6A	14.6V/13.8V	Constant Voltage	Red(Charging)
0.6A->0	14.6V/13.8V	Float/Trickle	Green (Fully Charged)

Safe and intelligent charging mode(12V 2A charger for 12V lead acid battery)

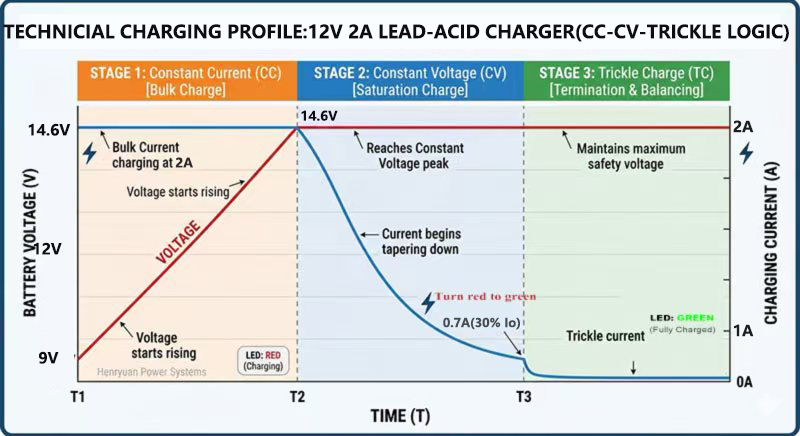

3-stage-CC-CV-Float-12V-2A-SLA-charging-curve

Packaging:

12V 2A lead acid battery charger , AC power lead, PE bag(Optional), White box.

Henryuan Wide 12V Lead Acid Charger Power Range:

Henryuan offers a comprehensive lineup of 12V lead acid battery charging solutions, including wall-mounted, modular plug, and compact desktop units, with power configurations spanning 3W to 400W to meet diverse requirements.
Contact us today for a safe and intelligent 12V2A Lead Acid Battery Charger solution. Henryuan: The High Quality 12V Lead Acid Battery Charger Manufacturer.

Customer Five-star reviews:

Customers often ask about 12V 2A lead-acid battery charger near me, no need to worry, Henryuan provides safe and convenient freight service, transporting directly from our workshop to the customer's warehouse in just a few days, saving time and cost. Henryuan, the high quality 12V 2A lead acid battery charger manufacturer.

Technical Specifications of Henryuan 12V Lead Acid Charger Range

Henryuan 14.6V LiFePO4 Charger(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output(Voltage/Current)	Output(Power)
	HRY1460300	100-146V ac, 50/60Hz	14.6V 0.3A	4.38W
	HRY1460400		14.6V 0.4A	5.84W
	HRY1460500		14.6V 0.5A	7.3W
	HRY1460600		14.6V 0.6A	8.76W
	HRY1460700		14.6V 0.7A	10.22W
	HRY1460800		14.6V 0.8A	11.68W
	HRY1460900		14.6V 0.9A	13.14W
	HRY1461000		14.6V 1.0A	14.6W
	HRY1461460		14.6V 1.2A	17.52W
	HRY1461500		14.6V 1.5A	21.9W
	HRY1461800		14.6V 1.8A	26.28W
	HRY1462000		14.6V 2.0A	29.2W
	HRY1462500		14.6V 2.5A	36.5W
	HRY1463000		14.6V 3.0A	43.8W
	HRY1464000		14.6V 4.0A	58.4W
	HRY1465000		14.6V 5.0A	73W
	HRY1466000		14.6V 6.0A	87.6W
	HRY1466500		14.6V 6.5A	94.9W
	HRY1467000		14.6V 7.0A	102.2W
	HRY1468000		14.6V 8.0A	116.8W
	HRY14610000		14.6V 10A	146W
	HRY14620000		14.6V 20A	292W
	HRY14625000		14.6V 25A	365W
