AC DC Adapter 100 240V AC 50/60HZ 12V 1A Adapter
Product Overview:

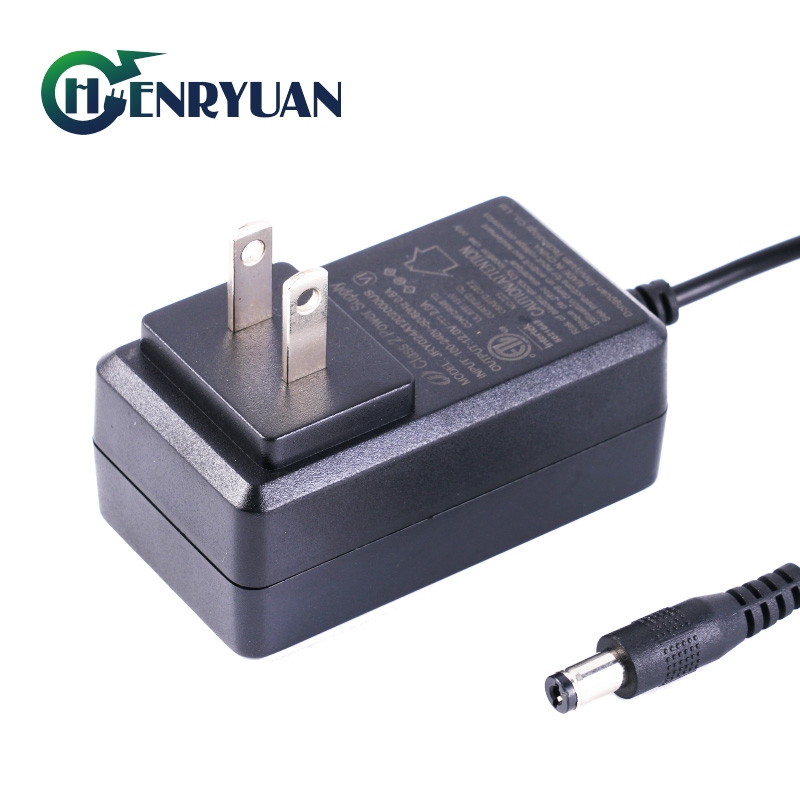

The Henryuan US Plug 12W DC 12V 1A adapter is a high-quality switching power supply certified by UL and FCC, boasting DOE level VI efficiency. Designed with advanced power schemes, it offers multiple protection mechanisms and reliable performance. It's ideal for powering LED lights, cameras, and various electronic devices, stable votage and current output.
Global Versions For Differenct Countries:
- US Plug: Model HRY1201000US
- UK Plug: Model HRY1201000UK
- EU Plug: Model HRY1201000EU
- JP Plug: Model HRY1201000JP
- AU Plug: Model HRY1201000AU
- All models output 12V 1A, 12W max.
Key Features:
Certifications:
- UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC
- Compliance with IEC standards: 60950, 62368, 61558, 60335
- DOE Level VI efficiency
Input Specifications:
- Voltage: 90-264Vac (rated 100-240Vac)
- Frequency: 47-63Hz
- Current: 0.6A
- Inrush Current: 35A
Output Specifications:
|
RATED OUTPUT |
SPEC. LIMIT |
REMARK |
|
|
Value(Min) |
Value(Max) |
|
|
|
Output Voltage |
11.4V |
12.6V |
12V±5% |
|
Output Current |
0.0A |
1.0A |
|
Protection Features:
- Overcurrent, overvoltage, short circuit, and hiccup protection
Variety Of Connectors Supported:
Quality Assurance:
- Experienced sales, engineers and rigorous supplier selection
- Strict material inspection and advanced production testing
- 100% aging test for up to 4 hours at full load
- Efficient after-sales support with a 48-hour resolution system
Company Profile:
- With over 13 years of expertise, Henryuan Group leads in switching power supply production and R&D. Their 12V 1A adapters are renowned for performance and safety, serving markets across the Americas, Europe, Asia, and beyond. These adapters feature excellent EMI performance and low ripple, suitable for diverse applications. Henryuan's engineers are adept at meeting both standard and custom requirements.
Henryuan 12V AC DC Switching Adapter Range:
Various 12V adapters with currents 0.3A, 0.5A, 0.6A, 1A, 1.2A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20A, 25A.
More Switching Power Supply Links:
Contact Us:
For a safe, reliable, and efficient 12V 1A AC/DC adapter, contact Henryuan's expert sales engineers today.
Common 12V AC DC Power Unit Models for Projects
|
Henryuan 12V AC DC Switching Power Supply(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS) |
Model |
Input |
Output(Voltage/Current) |
Output(Power) |
|
HRY1200300 |
100-240V ac, 50/60Hz |
12V 0.3A |
3.6W |
|
|
HRY1200400 |
12V 0.4A |
4.8W |
||
|
HRY1200500 |
12V 0.5A |
6.0W |
||
|
HRY1200600 |
12V 0.6A |
7.2W |
||
|
HRY1200700 |
12V 0.7A |
8.4W |
||
|
HRY1200800 |
12V 0.8A |
9.6W |
||
|
HRY1200900 |
12V 0.9A |
10.8W |
||
|
HRY1201000 |
12V 1.0A |
12.0W |
||
|
HRY1201200 |
12V 1.2A |
14.4W |
||
|
HRY1201500 |
12V 1.5A |
18W |
||
|
HRY1201800 |
12V 1.8A |
21.6W |
||
|
HRY1202000 |
12V 2.0A |
24.0W |
||
|
HRY1202500 |
12V 2.5A |
30W |
||
|
HRY1203000 |
12V 3.0A |
36.0W |
||
|
HRY1204000 |
12V 4.0A |
48.0W |
||
|
HRY1205000 |
12V 5.0A |
60.0W |
||
|
HRY1206000 |
12V 6.0A |
72.0W |
||
|
HRY1206500 |
12V 6.5A |
78.0W |
||
|
HRY1207000 |
12V 7.0A |
84.0W |
||
|
HRY1208000 |
12V 8.0A |
96.0W |
||
|
HRY12010000 |
12V 10.0A |
120.0W |
||
|
HRY12012000 |
|
12V 12.0A |
144.0W |
|
|
HRY12015000 |
|
12V 15.0A |
180.0W |
|
|
HRY12020000 |
|
12V 20.0A |
240.0W |
|
|
HRY12025000 |
|
12V 25.0A |
300.0W |
Keywords Related:
- DC 12V 1A
- 12V 1A Adapter
- 12V 1A DC Adapter
- 12V 1A Power Supply
- 12V 1A Switching Wall Adapter
- 12V 1Amp Adapter
Q&A:
Q1: Can I use a 12V 2A or 12V 5A power supply for a device that only requires 12V 1A?
A: Yes. Voltage (12V) must match your device perfectly, but current (amperage) is drawn on-demand by the load. A 1A device will only pull 1A from a 2A or 5A supply. Running a higher-amperage adapter provides extra electrical headroom, keeping the power brick running cooler and extending its lifespan. Warning: Never do the reverse. Using a 1A adapter on a device that demands 2A will overload the power supply, leading to excessive overheating, voltage drops, or system crashes.
Q2: Why does my current 12V 1A adapter cause a high-pitched buzz or static hiss in my AV/network gear?
A: That noise is the byproduct of high output voltage ripple and poor electromagnetic shielding leaking into your device’s analog signal paths. Henryuan addresses this hardware bottleneck by integrating advanced EMI filtering. We restrict output voltage ripple to under 50mV, guaranteeing an pure signal degradation for CCTV cameras, routers, and audio hardware.
Q3: Can we customize the DC barrel jack dimensions, tip polarity, and cable specifications?
A: Yes. While the most common type is the 5.5mm x 2.1mm center-positive plug, we can customize the output connectors according to the power input port of the customer's product, such as right-angle connectors, center-negative pin arrangements (for audio pedals), special length wires, or exposed tin-plated wires.
Q4: What global safety and compliance certifications are printed on this 12V 1A power adapter?
A: To safeguard your brand from customs bottlenecks and localized liability claims, Henryuan provides a comprehensive global compliance framework with direct, third-party verified marks:
North America: UL, cUL, ETL, FCC Part 15 Class B
Europe & UK: CE (LVD & EMC), TÜV-GS, UKCA, RoHS, REACH
Oceania: SAA, RCM
Asia: PSE (Japan), KC (South Korea), CCC (China), alongside a universal CB Scheme for rapid worldwide reciprocity.
